High Efficiency Nano Bubble Pump /Microbubble Pump For Gas-Water Mixing In Ozone/Oxygen Injection

FOB Reference Price:Get Latest Price
$430.00 - $7,500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Horsepower:
0.37-22KW
Maximum Flow Rate:
50T/H
Maximum Head:
80m
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OzoCenter
Model Number:
Netech
Structure:
Multistage Pump
Usage:
Water
Application:
Sewage, Water Purification
Power:
Electric
Pressure:
Low Pressure
name:
nano bubble pump /microbubble pump for gas-water mixing
voltage:
220V/60Hz 380V/50Hz
usage:
gas water mixing
Warranty:
1 Year
Keywords:
water pressure booster pump
Certification:
ISO9001:2008
Maximum temperature:
180℃
Flow rate:
1-50T/H
OEM/ODM:
Yes
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton or Wooden case
Port
Guangzhou
Product Details

High Efficiency Nano Bubble Pump /Microbubble Pump For Gas-Water Mixing In Ozone/Oxygen Injection

Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone. The mixing efficiency is more than 90%


The micro/nano bubble generator is using a simple method to solve micro bubbles in a liquid.
This bubble generator uses the properties of the vortex pump turbine and effectively solves gas with a liquid or two liquids, and adding it under pressure into a process.

A device that can be useful for efficient mixing and dissolving of the gaseous products in fluids. It is for this purpose equipped with a special impeller and can be used for continuous operation.


.

Specifications


Model


Flow rate


Specification

The maximum head of delivery (m)

flow rate (L/Min;M3/h)
The flow rate of head delivery at 40M (L/min;m³/h)
Maximum temperature resistance of material (℃)
20WSS04
1T
380/50HZ; 0.37KW
45M
12L/min
0.72m³/h
14L/min
0.84m³/h




120℃
25WSS07
2T
380/50HZ; 0.75KW
50M
17L/min
1.02m³/h
25L/min
1.5m³/h
32WSS15
3-4T
380/50HZ 1.5KW
60m
35L/min
2.1m³/h
52L/min
3.12m³/h
40WSS22
5-6T
380/50HZ 2.2KW
50m
82L/min
4.92m³/h
102L/min
6.12m³/h
50WSS75
10-15T
380/50HZ
7.5KW
80m
50L/min
3.0m³/h
102L/min
6.12m³/h




180℃
65WSS110

25-30T
380/50HZ 11KW
60m
300L/min
18m³/h
500L/min
30m³/h
80WSS220
45-50T
380/50HZ
22KW
60m
650L/min
39m³/h
850L/min
51m³/h

Notes:1T/2T voltage can custom made in 110V/60hz ,220V/50hz or 220V/60hz.

Micro-bubble Pump Test

Test date: Dec12th,2018
Temperture:23.9℃
Humidity: 52%
Total water capacity: 250L
Oxygen flow: 100L/H
No
Time
Oxygen concentration (PPM)
1
9:22
4.62
2
9:41
6.99
3
9:56
19.85
4
9:57
20.01
5
10:00
21.60
6
10:04
21.86
7
10:06
22.67
8
10:10
23.08
9
10:14
23.46

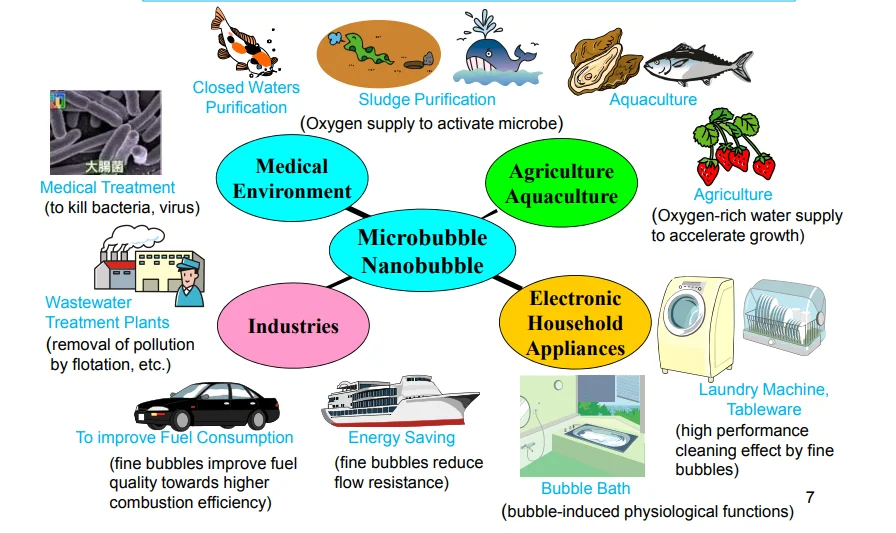

Application of Micro Bubble Pump:

1. Aeration systems
2.Oxygen injection
3. Ozone injection
4.Aquaculture - fish farming
5.Spa bath systems
6.Microbubble
7.Waste water treatment plants
8.Paper mill process water recycling etc.


Other uses:
• Mixing liquids with other liquids
• Mixing powers into liquids
