0.1T-500T UV Water Sterilizer for Aquariums, Aquaculture,Wastewater in Water Filters

FOB Reference Price:Get Latest Price
$20.00 - $5,681.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
NT-UV
Processing Capacity:
96
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OzoCenter
Material:
Carton or Wooden case
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Warranty:
1 Year
Commodity name:
UV/ultraviolet machine for water treatment
Lamp cover material:
304 or 316l stainless steel
Reaction chamber material:
Quartz
Warranty for lamp cover:
10 year
Service life:
9000-13000hrs
Max pressure:
0.8MPA
Lamp tube:
America Hanovia lamp tube
Standard:
America NSF55 standard and CJ/T204-2000
Sterilizing rate:
99.99%
water flow rate:
0.1T-500T
Supply Ability
Supply Ability:
1300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton or wooden seaworthy package with foam inside for protection
Port
Guangzhou/Shenzhen/Hongkong
Product Detail

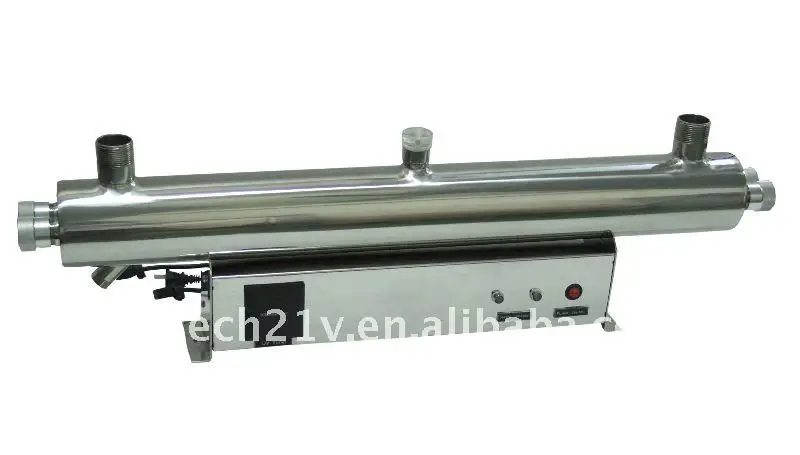

0.1T-500T UV Water Sterilizer for Aquariums, Aquaculture,Wastewater in Water Filters


Applications:

1.UV for swimming pools
2.Liquid Sugar UV Systems
3.Drinking water UV Disinfection
4.UV systems for Process / ultra-pure water
5.Warm water UV disinfection systems
6.Fish Farming and Aquaculture UV systems
7.Beverage & Bottled Water UV systems
8.Municipal wastewater UV systems

Features & Specifications:

1.Water flow rate: 0.1-500 ton/hr which can meet with different water capacities.
2.Warranty: 10 years warranty for stainless steel housing, other components are 1 year.
3.Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;
4.Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and sterilize effect.
5.Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.
6.Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the sterilizing rate up to 99.99%.
7.The whole system adopts America NSF55 standard of "Ultraviolet microbial water treatment equipment" and domestic Ultraviolet sterilizer industry standard for living and drinking water of CJ/T204-2000.
8.Use America Hanovia lamp tube.

CH-UV0.1-2.7T/Hr
Model
Water flow
(T/Hr)
Power
(W)
Size
(mm)
Water Input & Ouput Size
Max Pressure
(Mpa)
CH-UV005G
0.1
8
250×48×65
1/4″




0.8
CH -UV01G
0.2
10
295×60×80
1/4″
CH -UV02G
0.5
14
370×60×80
1/2″
CH -UV04G
1
17
450×73×110
1/2″
CH -UV06G
1.3
23
520×73×110
3/4″
CH -UV08G
1.8
28
650×73×110
3/4″
CH -UV12G
2.7
40
950×73×110
1″

CH-UV3~30T

Model
Water flow
(T/Hr)
Power
(W)
Size
(mm)
Water Input & Ouput Size
Max Pressure
(Mpa)
CH -UV3T
3
40×1
950×125×250
1″





           0.8
CH -UV5T
5
40×2
950×138×280
1.2″
CH -UV8T
8
40×3
950×170×310
1.5″
CH-UV12T
12
40×4
950×195×335
2″
CH-UV15T
15
40×5
950×195×335
2″
CH-UV20T
20
80×3
950×205×405
2.5″
CH-UV25T
25
80×4
950×275×465
2.5″
CH-UV30T
30
120×3
1250×275×545
3″

CH-UV40~500T

Model
Water flow              (T/Hr)
Power
(W)
Size
(mm)

Water Input & Ouput Size
Max Pressure
(Mpa)
CH-UV40T
40
120×4
1250×275×550
3″






0.8
CH-UV50T
50
120×5
1250×275×550
4″
CH-UV60T
60
150×5
1650×280×495
4″
CH-UV70T
70
150×6
1650×305×520
5″
CH-UV80T
80
150×7
1650×305×520
5″
CH-UV100T
100
150×8
1650×335×550
6″
CH-UV125T
125
150×10
1650×360×575
6″
CH-UV150T
150
150×12
1650×385×600
8″
CH-UV200T
200
150×16
1650×460×675
8″
CH-UV500T
500
240×25
1650×650×750
DN300

Note:

We alsohave Replacement Uv Steriliser Lamps & Tubes,any inquiry please let me know.

Ultraviolet Water Purification Versus Other Systems
Ultraviolet
VS
Chlorine
UV destroys these pollutants releasing free chlorine back to pool.
UV acts instantly. Only low level chlorine residuals are necessary.
UV cuts costs by releasing the combined chlorine.
Chlorine produces toxic by-products, which build up in water and atmosphere.
Chlorine is a slow acting disinfectant, unless concentrations are high.
Excessive chlorine is needed to overcome high organic loadings.
Ultraviolet
VS
Ozone
UV plant is simple, and lower in capital cost. It performs the same oxidation & disinfection tasks at a fraction of ozone's running cost.
Maintenance costs of UV equipment are lower, and do not increase significantly with age.
With UV plant simpler filter media can be used, saving carbon and chlorine costs.
It is impossible to overdose UV light.
UV treatment replaces ozone, and does not use or create any toxic chemicals whatsoever.
Ozone plant is relatively complex and costly and so is expensive to run, even when new.
Ozone plant becomes increasingly difficult and expensive to maintain.
To remove the toxic ozone before it enters the pool needs carbon filtration; this itself uses up free chlorine and increases the chemical costs.
Overdosing, and ozone entering the pool itself, is possible if ozone equipment malfunctions.
Ozone leak detection is difficult, giving rise to health & safety concerns (ozone is VERY toxic).
Ultraviolet
VS
Combined Ozone / UV System
Full flow treatment treats all the pool water flow, at every pass.
No restriction to pool water flow.
These hybrid units only treat a small portion of the pool flow, not recommended by the Pool Water Treatment Guide.
Higher pump pressures required, possibly requiring an extra boost pump.
